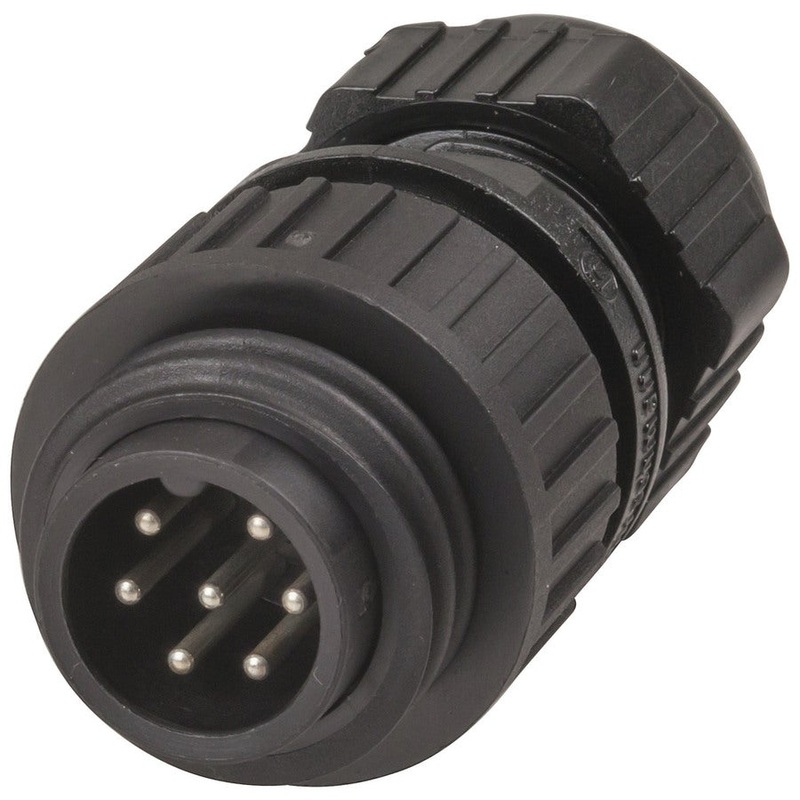

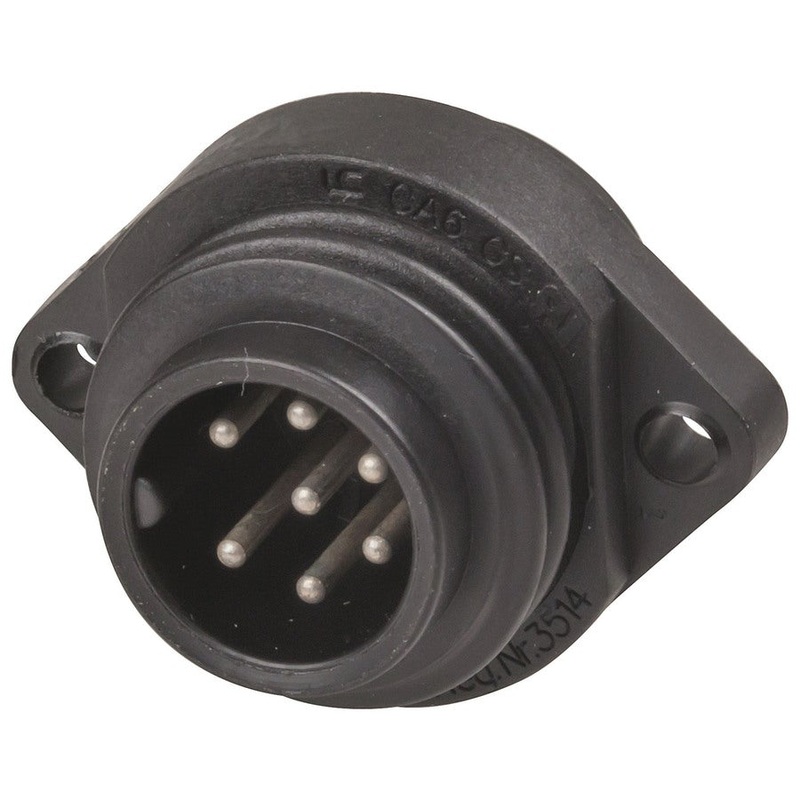

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. – or pre-engaging – earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
Features:
Insulation resistance: 10^8ohm
Contact Resistance: 5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 2.5mm
Temperature range: -40C to + 100C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Specifications:
| Pack Quantity |
1pc |
| Device |
Socket |
| Plug or Socket Type |
C16-1 Series |
| Contacts / Pins |
3pc |
| Case Material |
Plastic |
| Attachment Method |
Solder Tag |
| IP Rating certificate |
Yes |
| Cost: |
$25 |
| Free Shipping: |
We offer free shipping on orders over $30. Please check the free - shipping eligibility at checkout. |
| Delivery Time: |
It usually takes [3-5] business days for standard shipping. Please note that this is an estimated time frame and may be affected by local holidays, and unforeseen circumstances. |
